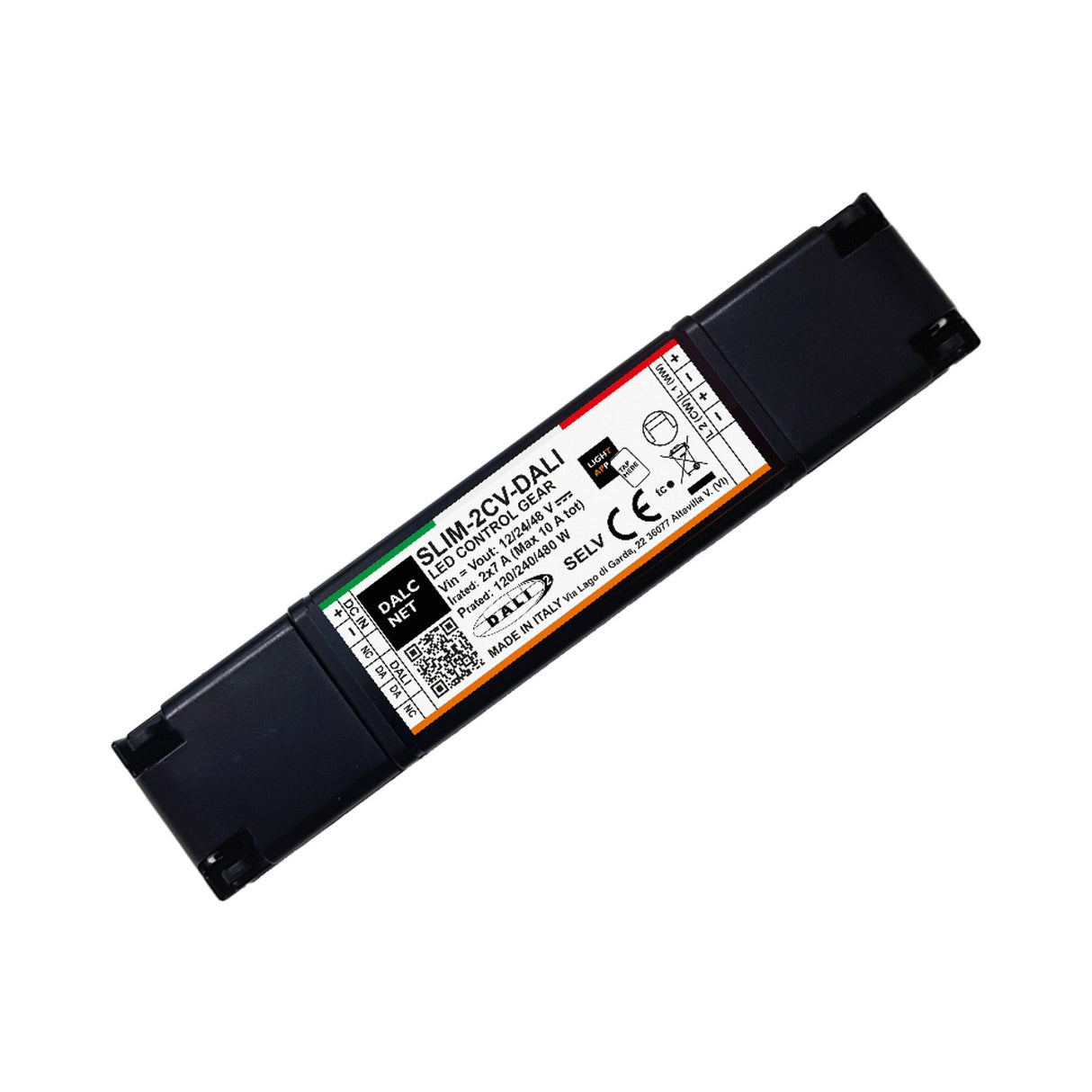

Slimline 2-Channel Tunable-White LED Dimmer with Dali ~ Model SLIM-2CV-DALI

Controller only ~ power supply, LEDs and all other accessories are sold separately

Description

The SLIM-2CV-DALI LED is a compact, two-channel tunable-white LED dimmer designed for constant voltage operation and controlled via the DALI protocol. It supports a wide input voltage range from 12V to 48V DC and is ideal for controlling white, single-color, tunable-white, and dim-to-warm LED strips and dimmable LED modules.

The SLIM-2CV-DALI LED dimmer delivers a total output current of up to 10A and includes advanced protection features such as over-voltage protection, under-voltage protection, reverse polarity protection, input fuse protection, open circuit detection, and short circuit protection. It uses PWM modulation and is optimized for seamless integration into DALI-based lighting systems.

Configuration is possible using the Dalcnet LightApp via NFC-enabled smartphones, allowing users to set modulation frequency, dimming curves, and brightness limits even when the device is powered off. The app is available for free on the Apple App Store and Google Play Store.

General specifications

• Model: SLIM-2CV-DALI
• Voltage Range: 12–48V DC
• Max Output Power: 2x 7A or 1x 10A
• Output channels: 2 channels (dual dimming, tunable white, dim-to-warm)
• Input: 2x Push button
• Bus: DALI
• Protection: IP20
• Working Temperature Range: -10°C to 40°C (14°F to 104°F)
• Dimensions: 136 x 29 x 21mm (5.35" x 1.14" x 0.83")
• Warranty: 5 years

Downloads

• SLIM-2CV-DALI cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
